Description

The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This 2-5/16" trailer ball features a ball capacity of 20,000 lbs. It features a 1-1/4" shank diameter, a 2-3/4" shank length, 0" of rise and a nickel-chrome finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.
  • Constructed from high-strength, hot-forged steel
  • Heat-treated for optimum wear resistance
  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength
  • Tested for safety to meet U.S. VESC V-5 specifications

Details

  • Overall Length: 2 3/4 in
  • Pallet Qty - XA: 12.000
  • Finish: chrome-plated
  • Shank Diameter: 1.25
  • WARNING CA Proposition 65: no
  • Warranty: limited lifetime warranty (one-year finish, one-year parts)
  • Side Application Type Description - XA: blank
  • Material - XA: forged steel
  • Sales Family Code - XA: acces
  • Ball Diameter: 2-5/16 in
  • Ball Shank Diameter: 1.250 in.
  • Gross Load: 20000 lbs.
  • Torque Capacity: 450 ft/lbs.
  • Rate Class - XA: 60.0
  • Item Class - XA: obs
  • Shipping Weight - XA: 4.050
  • Parcel Allowed - XA: yes
  • Item Width - XA: 0.000
  • Retail Length - XA: 7.000
  • Box Width in Inches - XA: 4
  • Box Height in Inches - XA: 2
  • Sales Family Description - XA: accessories
  • Sales Group Description - XA: trailer balls
  • Shank Rise: 0 in
  • Torque: 450 ft lb
  • Master Case ITF14: 60612314400081
  • Master Case Length Inches - XA: 5.700
  • Master Case Weight Lbs - XA: 49.600
  • Master Case Width Inches - XA: 14.370
  • Pallet Case Per - XA: 40
  • Pallet Case Per Layer - XA: 20
  • Pallet Total Weight Per - XA: 2006.000
  • Prop 65 Material - XA: unknown
  • Container Cases Qty - XA: 760
  • Container Pallet Qty - XA: 19
  • Container Unit Qty - XA: 9120
  • Container Volume Cubic Feet - XA: 400.00000
  • Container Weight Lbs - XA: 38114
  • Master Case Height Inches - XA: 6.500
  • Container Load Type - XA: pallets
  • Container Type - XA: 20gp

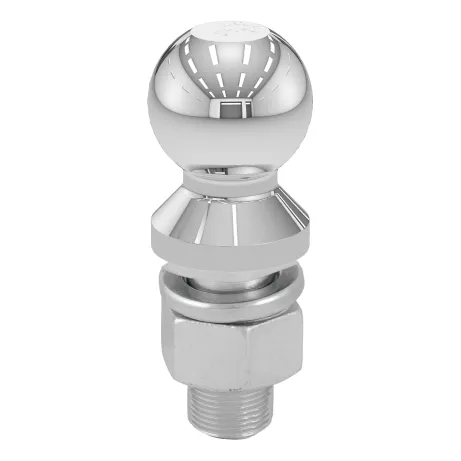

2-5/16" Trailer Ball (1-1/4" x 2-3/4" Shank, 20,000 lbs., Chrome)

By CURT -

#CUR40008

$33.99
